308AA00703A - SOLENOID OPERATED CARTRIDGE ESVL9-10-E0-0-00-0-A - DANFOSS

Description: ESVL9-10-E0-0-00-0-A

Function: Proportional Directional Valve, 5-way, 3-position, Spool Type, Non-Compensated

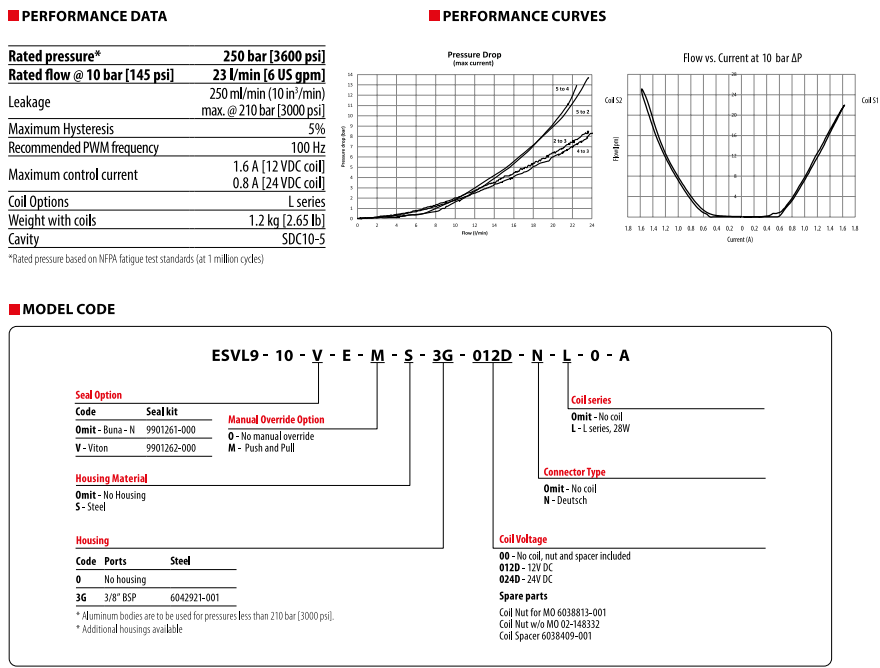

Proportional Directional Valve, 5-way, 3-position, Spool Type, Non-Compensated  250 bar [3600 psi] • 23I/min [6 US gpm]

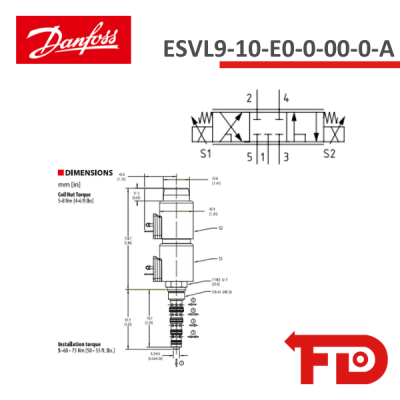

This is a 5-way, 3-position, spool type, non-compensated proportional directional valve. In its de- energized condition, all ports are blocked. Increasing the current to the bottom coil will cause the spool to move, proportionally opening flow from port 5 to 4 with return flow from port 2 to 3. Increasing the current to the top coil will proportionally open flow from port 5 to 2 with return flow from port 4 to 3. In both cases, port 5 will also be opened to port 1, which acts as the load sense port.

Price available only for registered users

If you need help Contact Us!

308AA00703A
Danfoss
