308AA00705A - SOLENOID OPERATED CARTRIDGE ESVL9-10-F0-0-00-C-A - DANFOSS

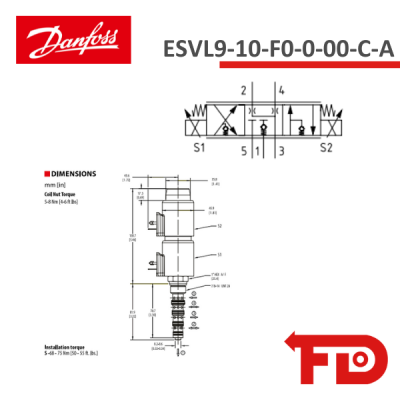

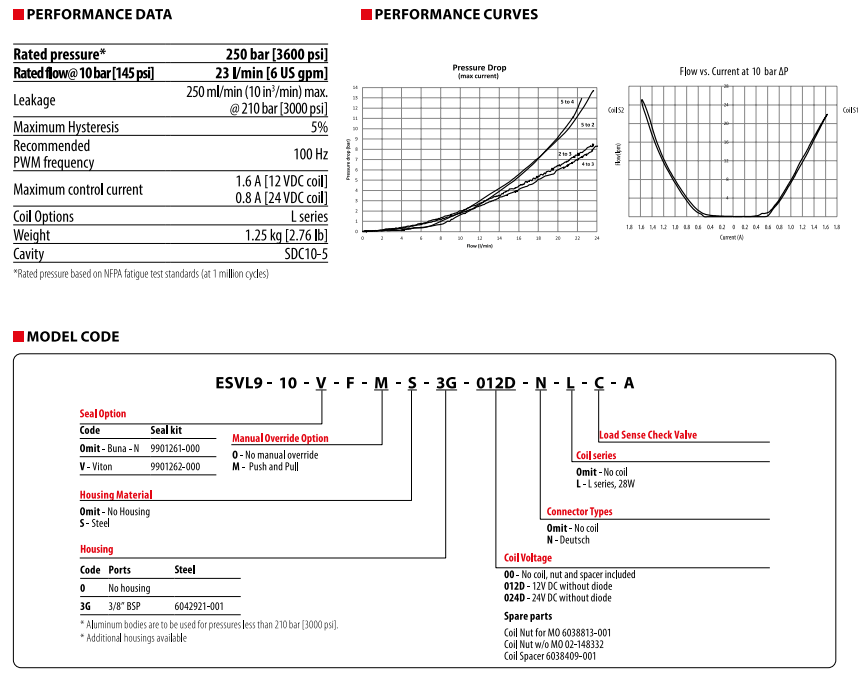

Description: ESVL9-10-F0-0-00-C-A

Function: Proportional Directional Valve, 5-way, 3-position, Spool Type, Non-Compensated, Load Sense Check

250 bar [3600 psi] • 231/min [6 US gpm]

This is a 5-way, 3-position, spool type, non-compensated proportional directional valve. In its de-energized condition, ports 5 and 1 are blocked, while ports 2 and 4 are open to port 3. Increasing the current to the bottom coil will cause the spool to move, proportionally opening flow from port 5 to 4 with return flow from port 2 to 3. Increasing the current to the top coil will proportionally open flow from port 5 to 2 with return flow from port4 to 3. In both cases, port 5 will also be opened to port 1, which acts as the load sense port.
