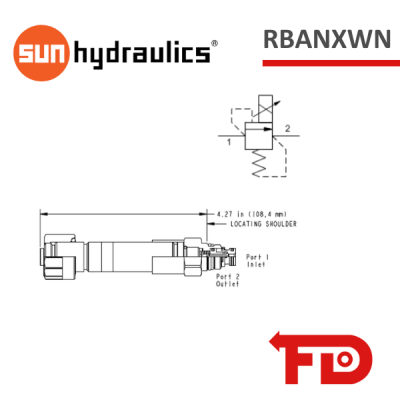

RBANXWN - RELIEF VALVE - SUN HYDRAULICS
Electro-proportional relief valve - pilot capacity, high pressure setting with no command
Capacity: 0.25 gpm | Cavity: T-8A
If you need help Contact Us!
| Cavity | T-8A |
| Series | P |
| Capacity | 1 L/min. |
| Maximum Operating Pressure | 350 bar |
| Maximum Valve Leakage at Reseat | 25 cc/min. |
| Reseat | >85% of setting |
| Solenoid Tube Diameter | 19 mm |
| Valve Hex Size | 22,2 mm |
| Valve Installation Torque | 27 - 33 Nm |
| Model Weight (with coil) | 0,45 kg |
| Seal kit - Cartridge | Buna: 990208007 |
| Seal kit - Cartridge | Viton: 990208006 |
| Seal and nut kit - Coil | Viton: 990770006 |
| Model Weight | 0.30 kg. |
