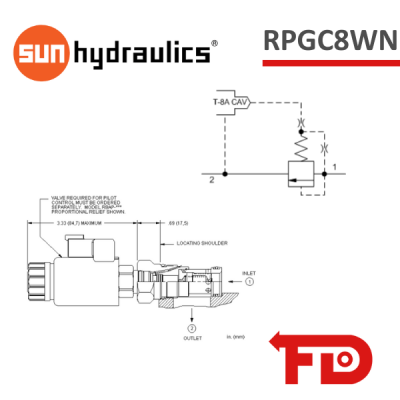

RPGC8WN - RELIEF VALVE - SUN HYDRAULICS
Pilot-operated, balanced piston relief main stage with integral T-8A control cavity
Capacity: 200 l/min | Cavity: T-3A
Configuration
- Adjustment Range: W
- Seal Material: N
If you need help Contact Us!
| Cavity | T-3A |
| Series | 2 |
| Capacity | 50 gpm |
| Maximum Operating Pressure | 5000 psi |
| Control Pilot Flow | 10 - 15 in³/min. |
| Pilot Control Cavity | T-8A |
| Main stage leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi |
| Valve Hex Size | 1 1/8 in. |
| Valve Installation Torque | 45 - 50 lbf ft |
| Model Weight | 0.38 lb. |
| Seal kit - Cartridge | Buna: 990203007 |
| Seal kit - Cartridge | EPDM: 990203014 |
| Seal kit - Cartridge | Polyurethane: 990003002 |
| Seal kit - Cartridge | Viton: 990203006 |
