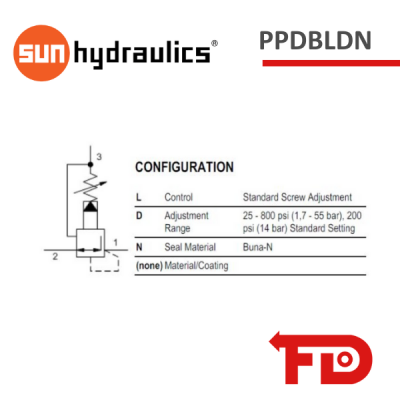

PPDBLDN - REDUCING/RELIEVING VALVE - SUN HYDRAULICS
Pilot-operated, pressure reducing/relieving valve
Capacity: 40 L/min. | Cavity: T-11A
- Control: L
- Cracking Pressure: D
- Seal Material: N
If you need help Contact Us!
| Cavity | T-11A |
| Series | 1 |
| Capacity | 40 L/min. |
| Maximum Operating Pressure | 350 bar |
| Factory Pressure Settings Established at | blocked control port (dead headed) |
| Control Pilot Flow | 0,11 - 0,16 L/min. |
| Adjustment - No. of CW Turns from Min. to Max. setting | 5 |
| Valve Hex Size | 22,2 mm |
| Valve Installation Torque | 41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 4 mm |
| Locknut Hex Size | 15 mm |
| Locknut Torque | 9 - 10 Nm |
| Model Weight | 0.15 kg. |
| Seal kit - Cartridge | Buna: 990011007 |
| Seal kit - Cartridge | EPDM: 990011014 |
| Seal kit - Cartridge | Polyurethane: 990011002 |
| Seal kit - Cartridge | Viton: 990011006 |
CRMP3VT1100D0
