800458339 - DIRECTIONAL VDP 06/4201-EN-1-00-XXX - DANFOSS

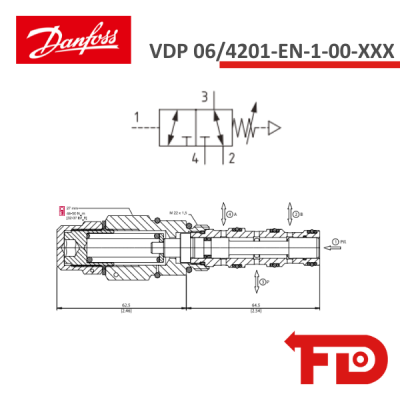

Description: VDP 06/4201-EN-1-00-XXX

Sequence Valve, 3-Way, Spool Type, Hydraulic Pilot, Atmospheric Vent 315 bar [4600 psi]• 23I/min [6 US gpm]

This is a hydraulically pilot operated spool valve where port 4 is closed and port 2 is open to port 3 in the neutral position. Pilot pressure is applied to port 1 and the spring chamber is referenced to atmosphere. When the pressure on port 1 reaches the setting, port 2 will begin to close and port 4 is opened to port 3. This valve can be used normally closed, normally open or as a diverter valve.
