02-174614 - REDUCING PRV12-10-S-0-15/ - DANFOSS

Description: PRV12-10-S-0-15/

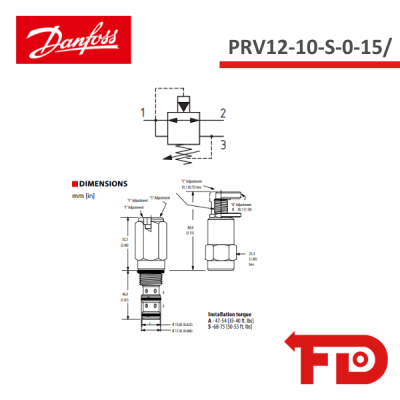

Pressure Reducing Valve, Relieving, Pilot Operated

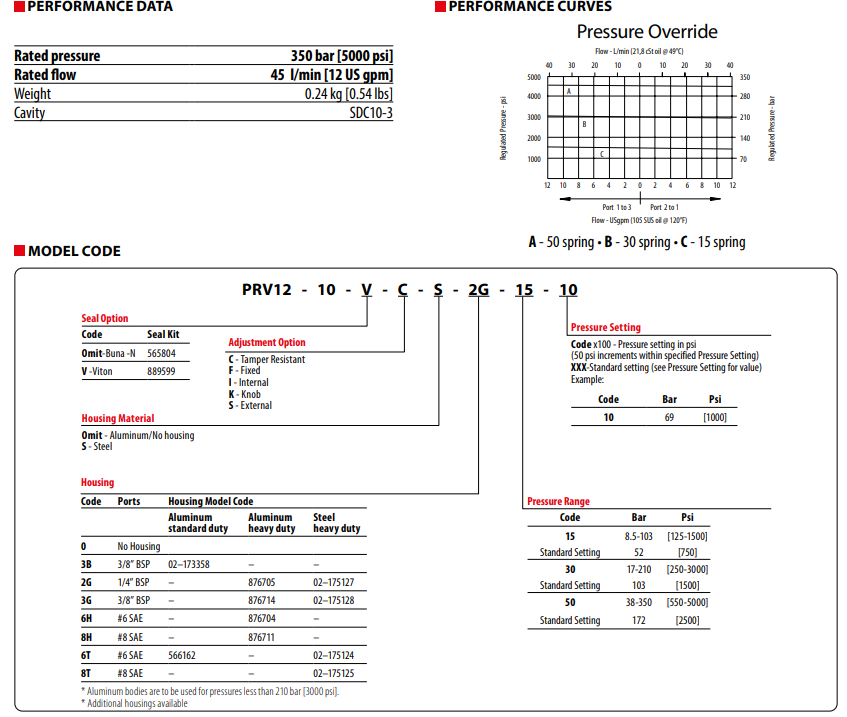

350 bar [5000 psi] • 45  l/min [12 US gpm]

This is a normally open, pilot operated pressure reducing valve. Port 2 is open to port 1 until the setting is reached, at which time the valve throttles the outlet flow limiting the pressure. If the outlet pressure rises due to an external force, then the valve will open port 1 to port 3 acting as a relief valve. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
