02-172863 - FLOW REGULATOR NV1-8-K-0- DANFOSS

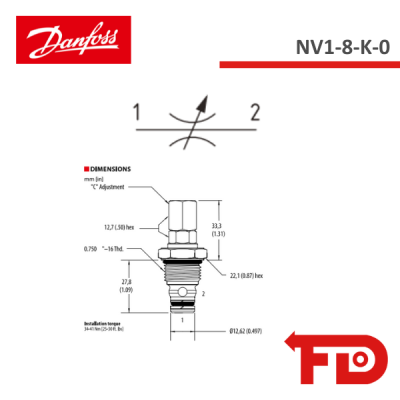

Description: NV1-8-K-0

Needle Valve, Fully Adjustable 350 bar [S000 psi] • 11I/min [3 US gpm]

This needle valve is a variable orifice used to create a pressure drop when flow passes from port 1 to 2 or port 2 to 1. Clockwise rotation of the adjustment screw decreases the flow setting until it is completely closed. The setting can be locked by tightening lock nut or knob on the adjustment screw.
