566553 - FLOW REGULATOR NV1-10-0-0 - DANFOSS

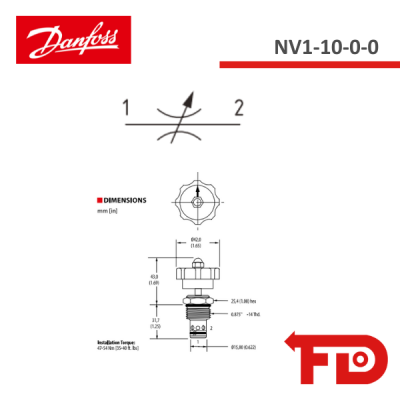

Description:  NV1-10-0-0

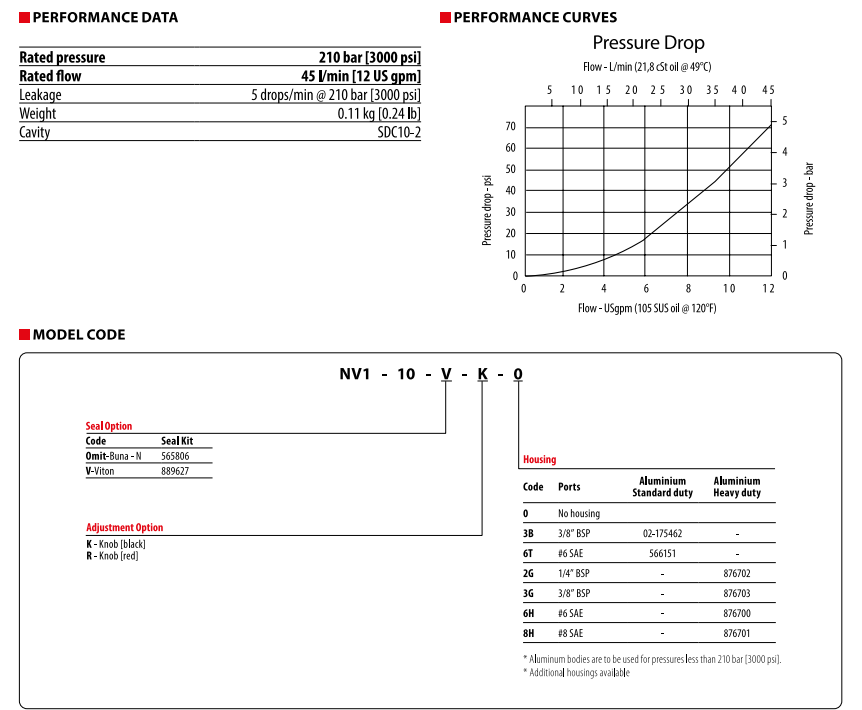

Needle valve, Fully Adjustable, Fine Metering 210 bar [3000 psi]• 45 I/min [12 US gpm]

This needle valve with fine metering is a variable orifice used to create a pressure drop when flow passes from port 1 to 2 or port 2 to 1. Clockwise rotation of the adjustment screw decreases the flow setting until it is completely closed.
