132640 - FLOW REGULATOR CP308-1-B-0-0.2 - DANFOSS

Description: CP308-1-B-0-0.2

Flow Control, Fixed, Pressure Compensated, Restrictive Type 210 bar [3000 psi]• 15 I/min [4 US gpm]

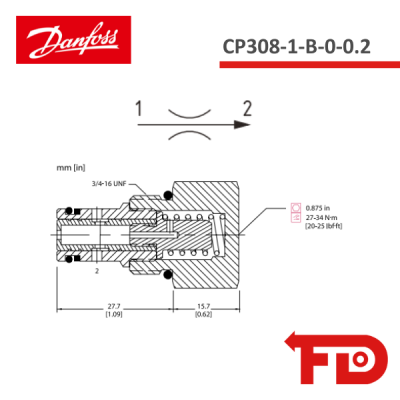

This is a fixed, restrictive type, pressure compensated flow control valve, where the flow from port 2 will remain constant regardless of the pressure difference across the valve. Flow enters at port 1 and passes across a fixed orifice in the spool, which creates a pressure drop. This causes the spool to move back against the spring, which then restricts the outlet flow.
