02-175013 - FLOW REGULATOR FR5-8-F-0-0.50 - DANFOSS

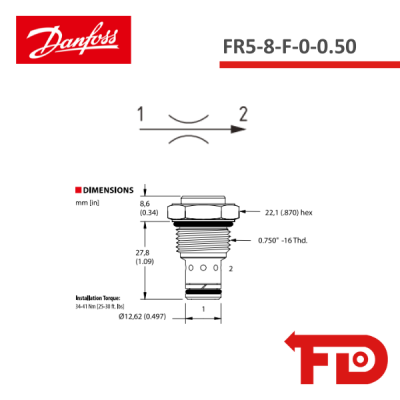

Description: FR5-8-F-0-0.50

Flow Control, Fixed, Pressure Compensated, Restrictive Type 350 bar [S000 psi] • 9.S I/min [2.S US gpm]

This is a fixed, restrictive type, pressure compensated flow control valve, where the flow from port 2 will remain constant regardless of the pressure difference across the valve. Flow enters at port 1 and passes across a fixed orifice in the spool, which creates a pressure drop. This causes the spool to move back against the spring, which then restricts the outlet flow.
