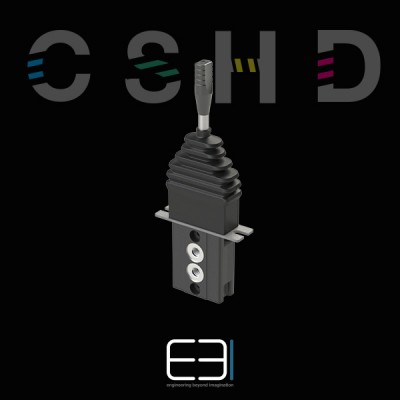

F00000709 - ESJ01A SINGLE AXIS PILOT CONTROL LEVER - EBI
Single axis pilot control lever section with 35 mm pitch
EBI motion controls servocontrols (joysticks and foot pedals) are used to control the work and drive hydraulics of modern mobile machines with high accuracy, safety and optimal performance.
Lead Time: 10 days
If you need help Contact Us!
FUNCTIONS AND BENEFITS
- Compact and light weight.
- Progressive and sensitive operation.
- Precise pressure control.
- Low operating effort.
- Optimised angular movements of joystick.
- Control element protected with rubber bellow.
- High durability and maintenance free.
TECHNICAL DATA
Maximum input pressure: 100 bar - [1450 psi]
Max backpressure on tank line: 3 bar - [43.5]
Control max flow on ports: 15 l/min - [4 GPM]
DIMENSIONS: The dimensional drawing represents a ESJ01A with 3 sections, standard assembly and BSP connections. You can configure a ESJ01A up to 12 sections
F00000709
