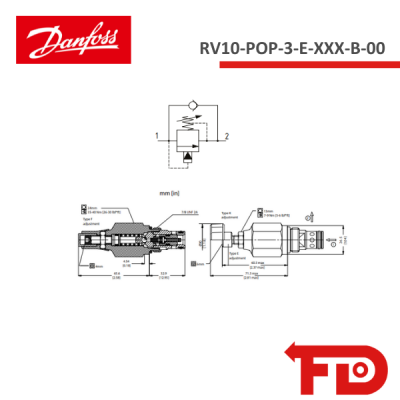

83001762 - RELIEF WITH ANTICAVITATION - RV10-POP-3-E-XXX-B-00 - DANFOSS

 Relief valve, Pilot Operated, Spool Type with Reverse Free Flow

250 bar [3600 psi] • 120 l/min [32 US gpm]

DESCRIPTION AND OPERATION

This is a pilot operated, poppet type relief valve that relieves from port 1 to port 2 with an integrated reverse flow check valve from port 2 to 1. Due to its unique poppet design, this valve offers faster response than a typical pilot operated valve. It can be used to limit pressure in a system or on a service line of a directional valve. It maintains accurate pressure control with constant or varying flows, while also allowing make up flow through in the reverse direction
