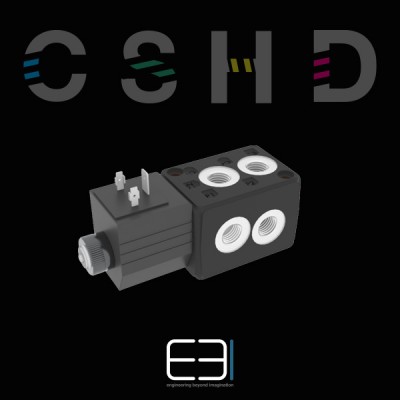

F00003492 - EDM06A - 6/2 DIVERTER - NO COIL - EBI
zoom_out_map
chevron_left chevron_right
Contact us about this product Did not find what you were looking for?

F00003492 - EDM06A - 6/2 DIVERTER - NO COIL - EBI

DESCRIPTION: EDM06A-BD611A-S62-AR27-RD05

Ports: S - 1/4"G

Spool: transit open

Coil: S - no coil

Drain: S - Internal

The product is supplied WITHOUT a COIL. You can purchase a compatible coil directly from our online catalog.

Lead Time: 10 days

Download Datasheet

DOWNLOAD CATALOG

Price available only for registered users

If you need help Contact Us!

Functions and benefits

  • Usable as stand-alone.
  • Directional spool valve with direct solenoid control.
  • Coils with different connectors and voltage are available.
  • Compact design and easy mounting.
  • Integrated threaded ports.

Technical data

Number of Sections: 1

Nominal Flow (l/min) - [GPM] 25 [7]

Internal Leakage A(B) → T (cm3/min) Δp = 100 bar / T = 40° C min. 10 [0.61] - max. 20 [1.22]

Operating Pressure (bar) [psi] 250 [3625]

Operating Pressure by Using External Drain (bar) [psi] 310 [4500]

Diverter Valve Stroke (mm) [in] 2,8 [0.11]

F00003492
EBI - Motion Controls
