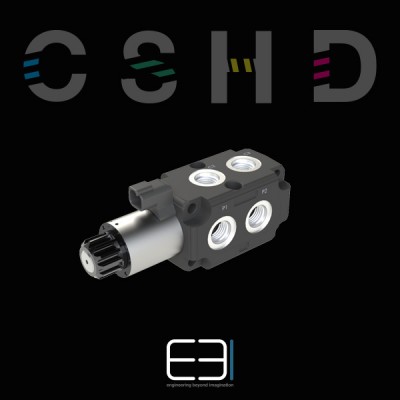

F00002991 - EDM08A 6/2 DIVERTER - NO COIL - EBI
DESCRIPTION: EDM08A-BD612B-S61-AR07-RD01
Ports: M - 3/8"G
Spool: transit closed
Coil: M - no coil
Drain: M - Internal
The product is supplied WITHOUT a COIL. You can purchase a compatible coil directly from our online catalog.
Lead Time: 10 days
If you need help Contact Us!
Functions and benefits
- Usable as stand-alone.
- Directional spool valve with direct solenoid control.
- Coils with different connectors and voltage are available.
- Compact design and easy mounting.
- Integrated threaded ports.
Technical data
Number of Sections: 1
Nominal Flow (l/min) - [GPM] 50 [14]
Internal Leakage A(B) → T (cm3/min) Δp = 100 bar / T = 40° C min. 10 [0.61] - max. 20 [1.22]
Operating Pressure (bar) [psi] 250 [3625]
Operating Pressure by Using External Drain (bar) [psi] 310 [4500]
Diverter Valve Stroke (mm) [in] 3,2 [0.13]
F00002991
