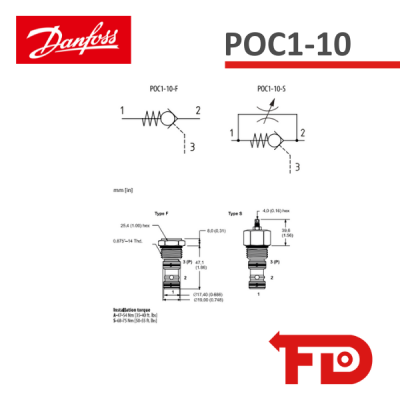

02-173179 - CHECK VALVE, PILOT OPERATED POC1-10-F-0-030 - DANFOSS

Description: POC1-10-F-0-030

Function: Pil. Op. Check valve, pilot on 3, no o-ring, 3:1

Check valve, Standard Direction 350 bar [5000psi] - 57/min [15 US gpm]

Description and operation: this is a Check valve where free flow takes place from port 2 to 1 and is blocked from port 1 to 2 ultill pilot pressure is applied to port 3.
