800299229 - CHECK, PILOT OPERATED - RPV 06-5-00 - DANFOSS

Pilot Operated Check Valve, Port 1 Pilot to open with Drain

315 bar [4600 psi]  30 l/min [8 US gpm]

DESCRIPTION AND OPERATION

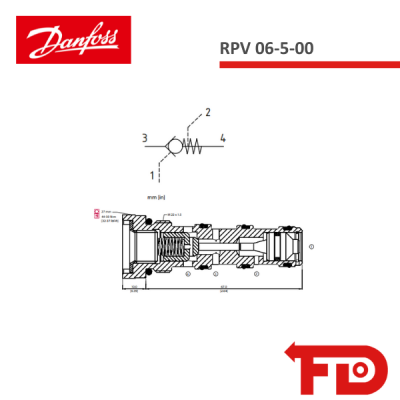

This is a pilot operated check valve with a separate drain. Free flow takes place from port 3 to 4 and is blocked from port 4 to 3 until pilot pressure is applied to port 1. Port 2 is drained to tank to remove any effect of pressure in port 3 affecting the pilot pressure required to keep the valve open.
