171184319 - COIL M16-110RA-22W-DN - DANFOSS

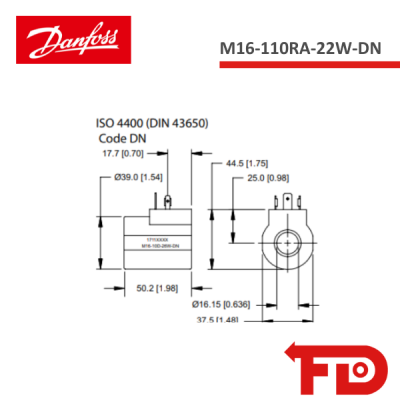

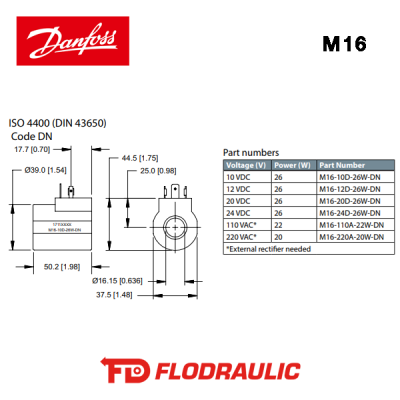

Description: M16-110RA-22W-DN

Specification:

• Duty cycle: 100% at 115% of rated voltage at 40°C [104°F]
• Magnet wire insulation: (200°C)
• Ambient temperature range: -20 to 40 °C [-4 to 104 °F]
• Environmental protection rating: IP69K: DE IP67: AJ , AS, and M3 term IP65: FL and DN
• Input voltage range: 85% to 115% of rated voltage
• Temperature rise at 115% of rated voltage: 130°C [266°F] above ambient
• AC coils require external rectier
