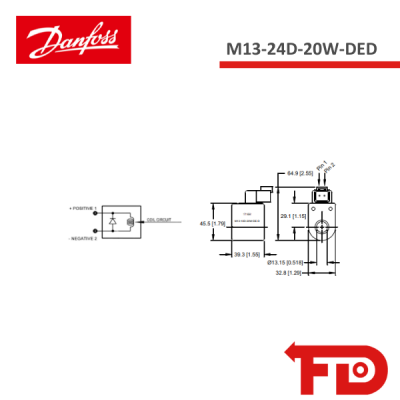

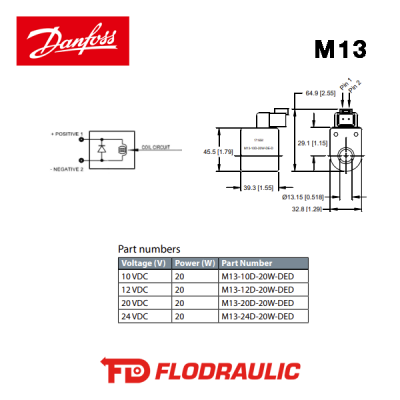

17116591 - COIL M13-24D-20W-DED - DANFOSS

Description: M13-24D-20W-DED

Function: M13 Deutsch Diode

Specifications:

• Duty cycle: 100% at 115% of rated voltage at 40°C [104°F]

• Magnet wire insulation: (200°C)

• Ambient temperature range: -20 to 40 °C [-4 to 104 °F]

• Environmental protection rating:

IP69K: DE

IP67: AJ , AS, and M3 term

IP65: FL and DN

• Input voltage range: 85% to 115% of

rated voltage

• Temperature rise at 115% of rated voltage: 130°C [266°F] above ambient

• AC coils require external rectier

• Weight: 0.2 kg [0.44 lb]
