11116122 - COIL R16-12D-20W-DEDB - DANFOSS

Coils and Electronics

R16 - 20W Robust Coil

PERFORMANCE DATA:

  • Duty cycle: 100% at 133% of rated voltage and 70°C [158° F]
  • Magnet wire insulation: 200°C [392° F]
  • Ambient temperature range: -40 to +70 °C [-40 to 158 °F]
  • Input voltage range: 75% to 133% of rated voltage

Price available only for registered users

If you need help Contact Us!

MODEL CODE

R16 10D 20W AJ UL
Coil Voltage Coil Power Connector Type UL rating
Code Coil Voltage
10D 10 VDC
12D 12 VDC
20D 20 VDC
24D 24 VDC
Code Connector Type
AS Amp SuperSeal 1
ASDB Amp SuperSeal 1.5 with bi-directional diode
DE Deutsch

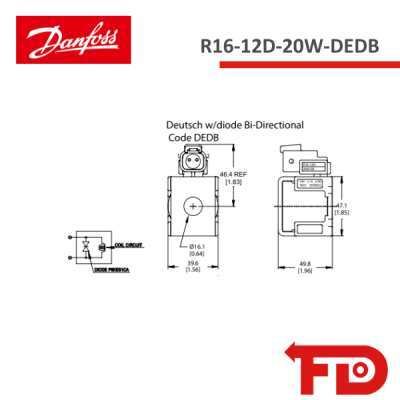

DEDB Deutsch with Diode
FL Flying Leads
FLDB Flying Leads with Diode
Omit Non UL rated
UL Rated (DE only)

* certificate available upon request
11116122
Danfoss
