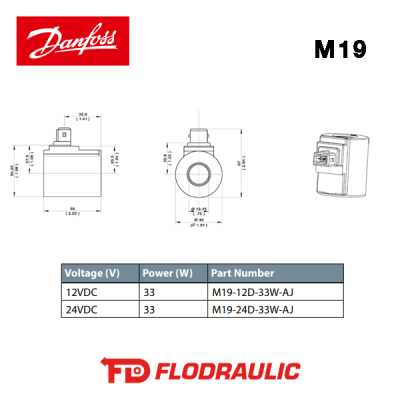

171142219 - COIL - M19-24D-33W-AJ - DANFOSS

SPECIFICATIONS

• Duty cycle: 100% at 115% of rated voltage at 40°C [104° F]

• Magnet wire insulation: (200° C)

• Ambient temperature range: -20° to 40° C [-4° to 104° F]

• Environmental protection rating: IP65 (DN &FL), IP67 (AJ, AJD), IP69K (DE, DED)

• Input voltage range: 85% to 115% of rated voltage

• Temperature rise at 115% of rated voltage: 130° C [266° F] above ambient temperature

• Weight: 0.37 kg [0.82 lb]

• AC Coils require external rectier
