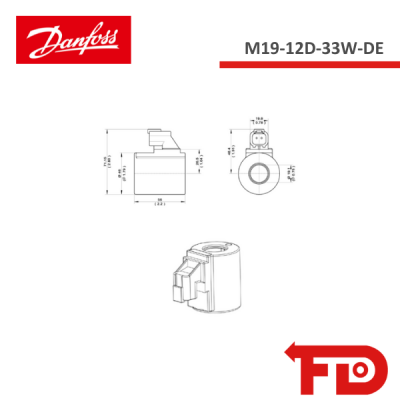

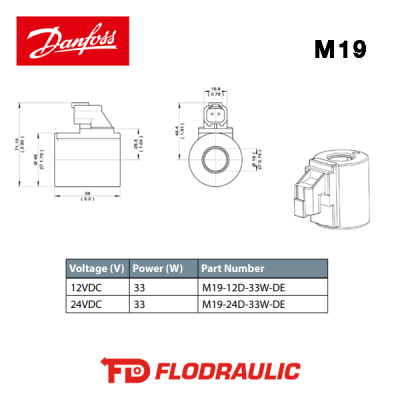

171142919 - COIL - M19-12D-33W-DE - DANFOSS
zoom_out_map
chevron_left chevron_right
Contact us about this product Did not find what you were looking for?

171142919 - COIL - M19-12D-33W-DE - DANFOSS

171142919 - COIL - M19-12D-33W-DE - DANFOSS

Price available only for registered users

If you need help Contact Us!

SPECIFICATIONS

  • Duty cycle: 100% at 115% of rated voltage at 40 °C [104 °F]

  • Magnet wire insulation: 200 °C

  • Ambient temperature range: -20 °C to 40 °C [-4 °F to 104 °F]

  • Environmental protection rating:

    • IP65: DN and FL

    • IP67: AJ and AJD

    • IP69K: DE and DED

  • Input voltage range: 85% to 115% of rated voltage

  • Temperature rise at 115% of rated voltage: 130 °C [266 °F] above ambient temperature

  • Weight: 0.37 kg [0.82 lb]

  • AC coils: Require external rectifier

171142919
Danfoss
