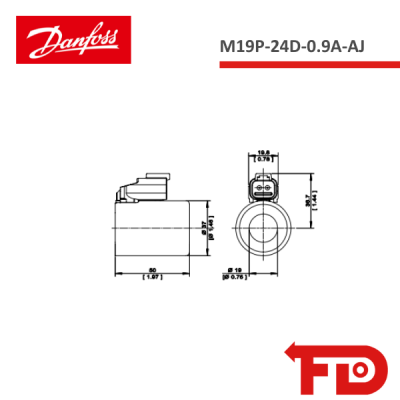

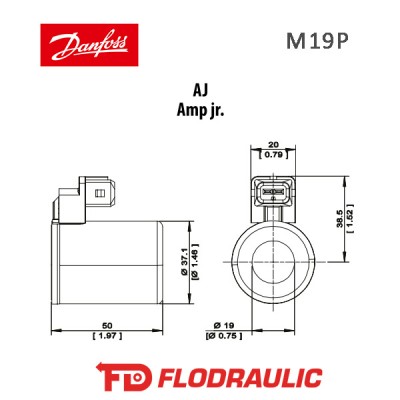

171147419 - COIL - M19P-24D-0.9A-AJ - DANFOSS

SPECIFICATIONS

• Magnet wire insulation: 200 °C

• Duty cycle rating: 100%

• Maximum continuous current:

  • 1.8 A at 12 V

  • 0.9 A at 24 V

• Ambient temperature range: -20 °C to 40 °C [-4 °F to 104 °F]

• Environmental protection:

  • IP69K: DE connector

  • IP65: All other connectors

• Weight: 0.37 kg [0.82 lb]

• Usage: For proportional applications only
