132598 - DIRECTIONAL CONTROL VALVE CP710-1-B-0-C-080-S2 - DANFOSS

Description: CP710-1-B-0-C-080-S2

Function: Directional Control Valve, 2-Way, Spool Type, Hydraulic Pilot, Atmospheric Vent

Directional Control Valve, 2-Way, Spool Type, Hydraulic Pilot, Atmospheric Vent 210 bar [3000 psi]• 40 I/min [11 US gpm]

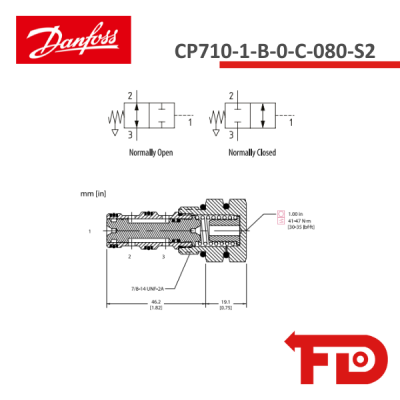

This is a 2-way, spool type, hydraulically piloted directional control valve with an atmospheric vent. It is available in normally open or normally closed configurations between ports 2 and 3, which shift when the pilot pressure at port 1 overcomes the opposing spring. Due to the atmospheric vent, the pilot pressure required to shift the valve is independent of the pressure in the line between port 2 and port 3.

Price available only for registered users

If you need help Contact Us!

132598
Danfoss
