137825 - DIRECTIONAL CONTROL VALVE CP712-11-U-0-C-080 - DANFOSS

Description: CP712-11-U-0-C-080

Function: Directional Control Valve, 2-Way, Spool Type, Hydraulic Pilot, External Drain

Directional Control Valve, 2-Way, Spool Type, Hydraulic Pilot, External Drain 450 bar [6500 psi]• 130 I/min [34 US gpm]

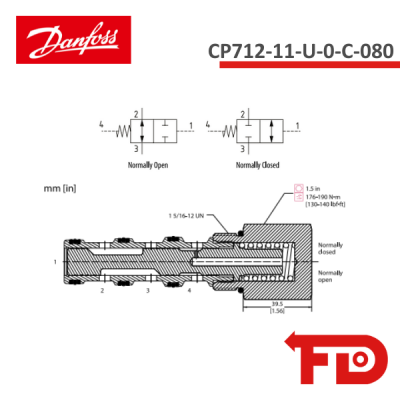

This is a 2-way, spool type, hydraulically piloted directional control valve with external drain. It is available in normally open or normally closed configurations between ports 2 and 3 that shift when pilot pressure is applied to port 1. Due to the external drain, the pilot pressure required shift the valve is dependent on the pressure in port 4, which would normally be connected to tank. Due to the high pressure rating, this valve is ideal for use in transmission circuits to by-pass flow dividers.

Price available only for registered users

If you need help Contact Us!

137825
Danfoss
