401AA00053A - DIRECTIONAL CONTROL VALVE 3CP2-1.5S - DANFOSS
Description: 3CP2-1.5S
Function: Manual Push Valve, 2-Way, Normally Closed, Poppet Type with Check

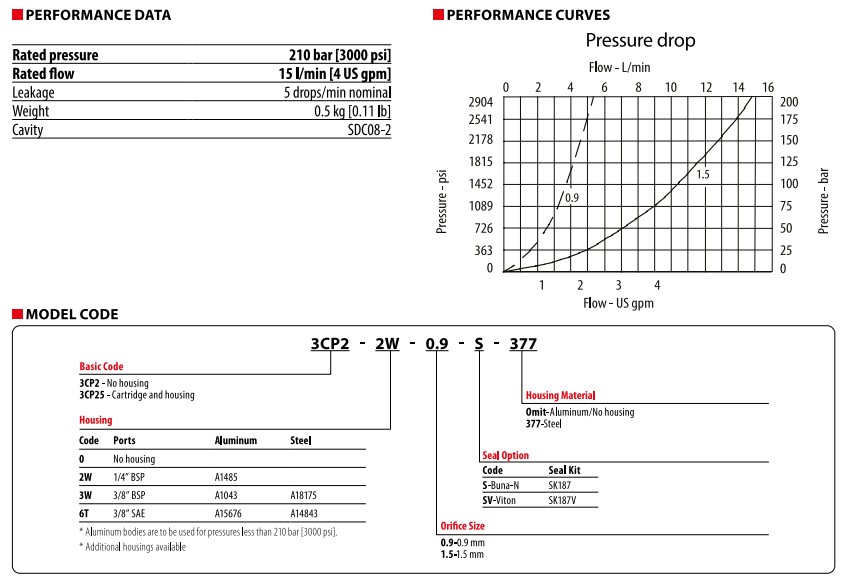

Manual Push Valve, 2-Way, Normally Closed, PoppetType with Check 210 bar [3000 psi]• 15 I/min [4 US gpm]

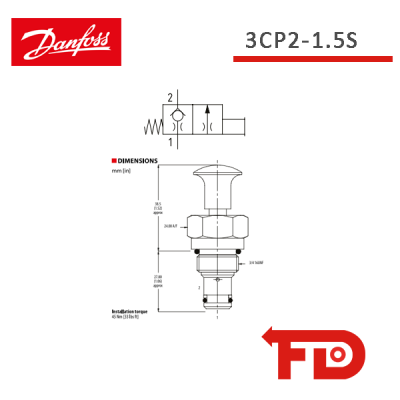

This is a 2-way, normally closed, restricted, poppet type, push to open directional control valve. In the normal position, flow is blocked from 1 to 2. When the knob is manually pushed downward, port 1 is connected to port 2 through a pre-determined orifice. This valve is ideal for emergency lowering applications. It is not recommended to flow from port 2 to port 1. If this is needed, please consult the factory.
401AA00053A
