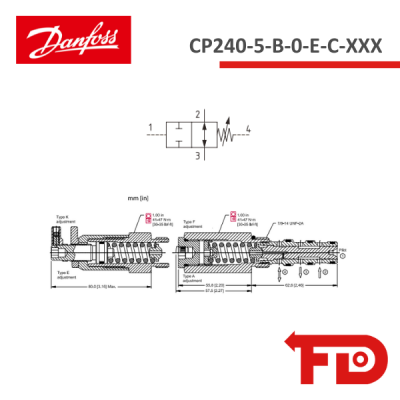

139659.000 - DIRECTIONAL CONTROL VALVE CP240-5-B-0-E-C-XXX - DANFOSS

Description:  CP240-5-B-0-E-C-XXX

Function: Sequence Valve, Normally Open, Spool Type, Hydraulic Pilot, External Drain

Sequence Valve, Normally Open, Spool Type, Hydraulic Pilot, External Drain 210 bar [3000 psi]• 25 I/min [7 US gpm]

This is a hydraulically pilot operated spool valve, normally open from port 2 to 3 with port 4 as a drain port connected to tank. When the pilot pressure on port 1 reaches the setting, the valve will begin to close port 2 to 3. This is ideal for sensing pressure in a remote area of a circuit to sequence another operation.
