02-175823 - SOLENOID OPERATED CARTRIDGE SV13-16-C-0-00 - DANFOSS

Description: SV13-16-C-0-00

Function: 2 WAY-2 POS ON-OFF POPPET VALVE NORMALLY CLOSED

Solenoid Valve, 2-way, Poppet Type, Normally Closed, Pilot Operated with Reverse Free Flow 350 bar [5000 psi] • 132 l/min [35 US gpm]

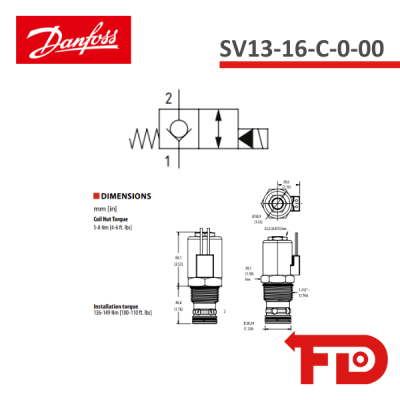

This is a 2-way, 2-position, poppet type, pilot operated, normally closed solenoid valve. In its de-energized condition, low passes from port 1 to 2 but is blocked in the opposite direction. When energized, low passes from port 2 to 1 and from 1 to 2. Due to the low leakage provided by the poppet design, these valves can be used to hold loads in position or to interrupt a pressure line where low normally passes in both directions.
