805312919 - SOLENOID OPERATED CARTRIDGE SV08-22-02-00-00-B-00 - DANFOSS

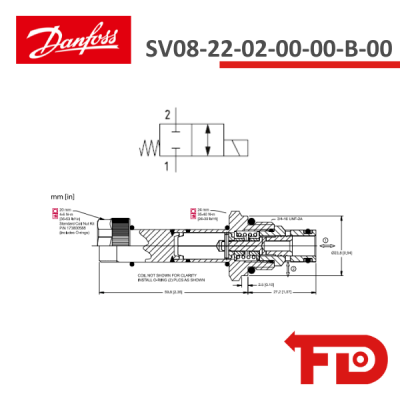

Description: SV08-22-02-00-00-B-00

Function: 2 WAY-2 POS ON-OFF SPOOL VALVE

Solenoid Valve, 2-way, Poppet Type, Normally Closed, Pilot Operated with Reverse Free Flow 230 bar [3300 psi] • 18 l/min [4.7 US gpm]

This is a 2-way, 2-position, poppet type, pilot operated, normally closed solenoid valve. In its de-energized condition flow is blocked in both directions. When energized, flow can take place from port 2 to 1 and from 1 to 2. The value will be subject to normal spool leakage dependent on the pressure difference between the ports. These valves can be used to interrupt a pressure line where flow is expected to pass in both directions in the de-energized condition.
