805313219 - SOLENOID OPERATED CARTRIDGE SV08-23-03-00-00-B-00 - DANFOSS

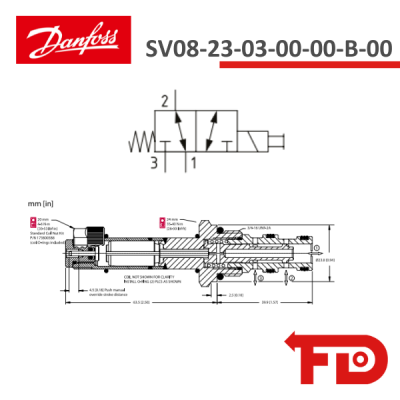

Description: SV08-23-03-00-00-B-00

Function: 3 WAY-2 POS ON-OFF SPOOL VALVE

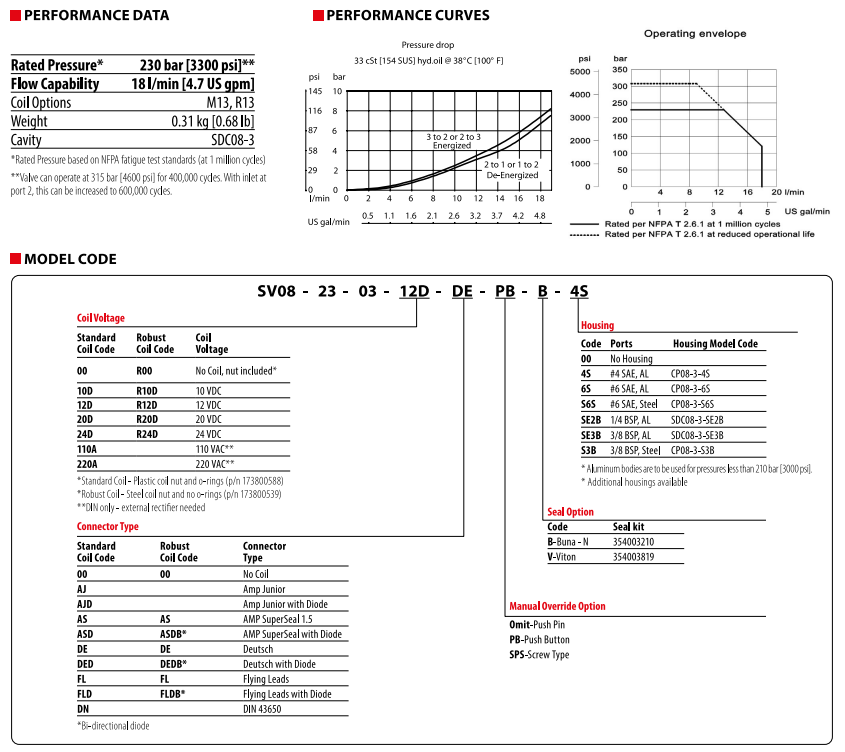

Solenoid Valve, 3-way, 2-position, Spool Type230 bar [3300 psi]• 181/min [4.7 US gpm]

This is a 3-way, 2-position, spool type, direct acting solenoid valve. In the de-energized condition, port 1 is open to port 2 and port 3 is blocked. When energized, port 3 is open to port 2 and port 1 is blocked. These valves can be used in normally open, normally closed or selector modes. They come standard with a push pin manual override. Always check the operating envelope to make sure the valve will work under the required application conditions.

Price available only for registered users

If you need help Contact Us!

805313219
Danfoss
