805311019 - DIRECTIONAL EVK 06/C5-00-00-00 - DANFOSS

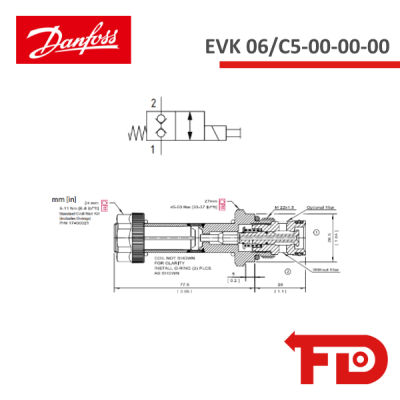

Description: EVK 06/C5-00-00-00

Solenoid Valve, 2-way, Poppet Type, Normally Closed, Direct Acting, Double Blocking 210 bar [3000 psi] • 40 l/min [10.6 US gpm]

This is a 2-way, 2-position, poppet type, direct acting, normally closed, bi-directional solenoid valve. In its de-energized condition, flow is blocked in both directions. Leakage in either direction is kept to a minimum due to the poppet design. When energized, flow can take place from port 2 to 1 and from 1 to 2. These valves come standard with a push pin manual override. These valves can be used to hold loads in position or interrupt a pressure line where flow is expected to pass in both directions in the de-energized condition. They do not suffer from momentary opening due to shock pressures.
