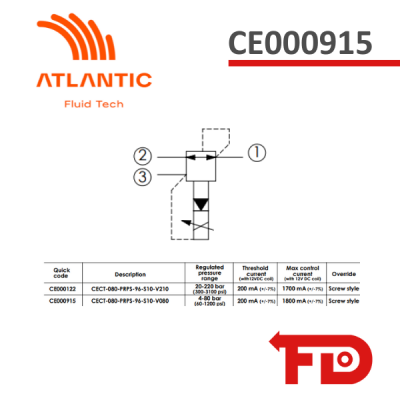

CE000915 - REDUCING VALVE CECT-080-PRPS-96-S10-V080 - ATLANTIC FLUID TECH
Description: CECT-080-PRPS-96-S10-V080
Function: Electro-proportional, pilot operated, pressure reducing/relieving valve
If you need help Contact Us!
| Max. operating pressure | 250 bar (36000 psi) |
| Rated flow | 80 l/min (32 gpm) |
| Cavity | SAE-10-3N |
| Weight | 0,33 kg |
| Coil type | M15 type |
| Seal kit | RA100092 |
| Regulated pressure range | 4-80 bar (60-1200 psi) |
| Treshold current (with 12VDC coil) | 200 mA (+/- 7%) |
| Max control current (with 12 DC coil) | 1800 mA (+/-7%) |
| Override | Screw style |
CE000915
