850195019 - RELIEF - PRV10-POC-105-B-00-00-E-B-00 - DANFOSS

Proportional Relief Valve, Spool Type, Pilot Operated, Normally Closed

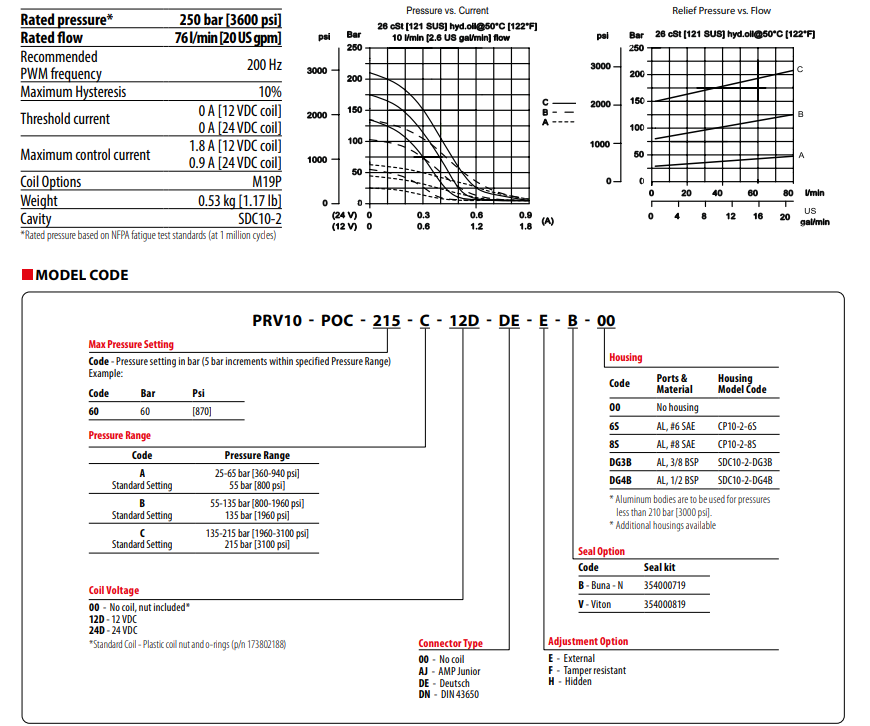

250 bar [3600 psi] • 76 l/min [20 US gpm]

DESCRIPTION AND OPERATION ù

This is a pilot operated, spool type, normally closed, proportional relief valve. In the de-energized condition, the pressure setting will be at a maximum. As current is applied to the coil, the pressure setting of the valve will decrease proportionally. This valve is ideal for use in cooling circuits to regulate the speed of the fan.

Price available only for registered users

If you need help Contact Us!

850195019
Danfoss
Size
10
Way
2
Cavity
SDC10-2
Coil
M19P
