308AA00697A - SOLENOID OPERATED CARTRIDGE ESVL9-10-E0-0-00-C-A - DANFOSS

Description: ESVL9-10-E0-0-00-C-A

Function: Proportional Directional Valve, 5-way, 3-position, Spool Type, Non-Compensated, Load Sense Check

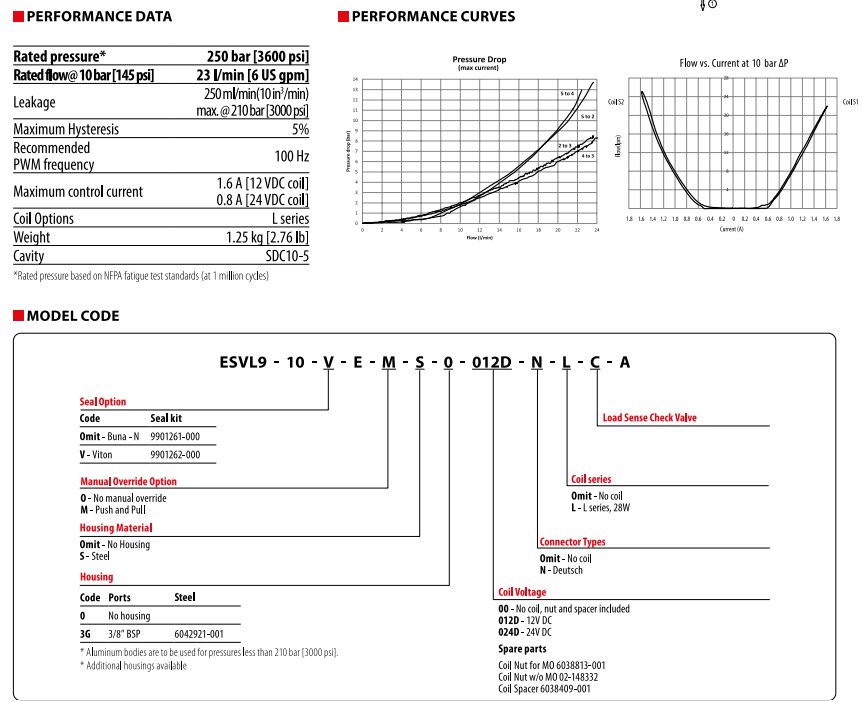

250 bar [3600 psi] • 231/min [6 US gpm]

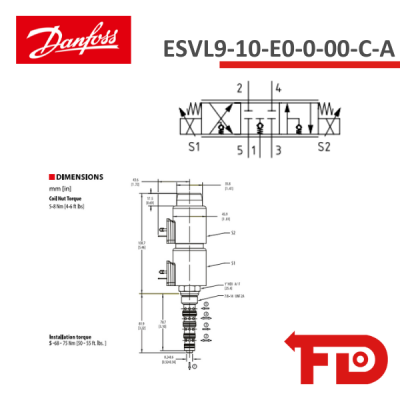

In its de-energized condition, all ports are blocked. Increasing the current to the bottom coil will cause the spool to move, proportionally opening flow from port 5 to 4 with return flow from port 2 to 3. Increasing the current to the top coil will proportionally open flow from port 5 to 2 with return flow from port 4 to 3. In both cases, port 5 will also be opened to port 1, which acts as the load sense port. An integral check valve in port 1 prevents reverse flow and allows separation of the load sense pressures of valves in parallel.
