11226438 - DIRECTIONAL CONTROL VALVE PSV10-34-05-00-00-3-B-00 - Danfoss

Description: PSV10-34-05-00-00-3-B-00

Function:  Proportional Directional Valve, 4-way, 3-position, Spool Type, Non-Compensated

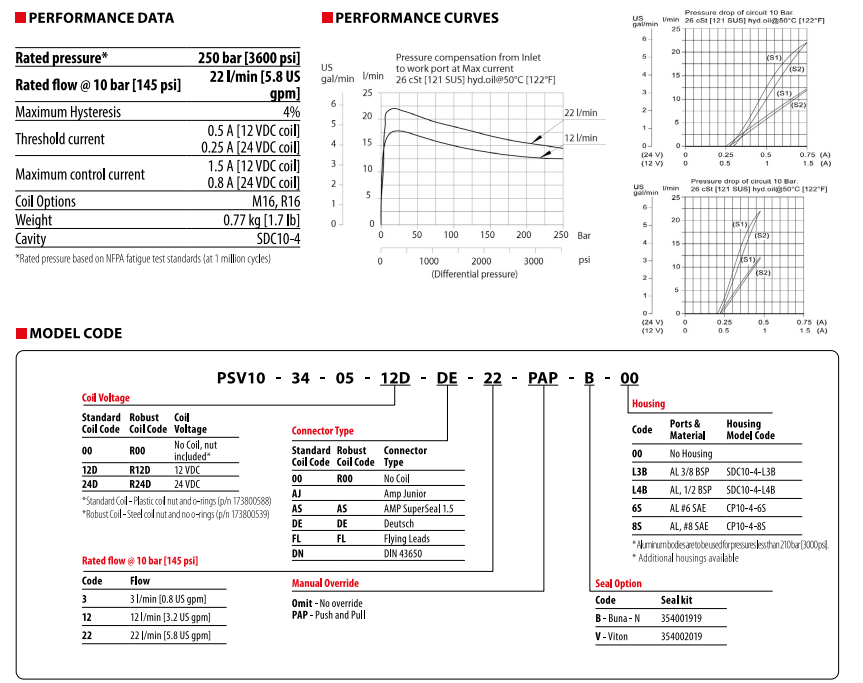

250 bar [3600 psi] • 221/min [S.8 US gpm]

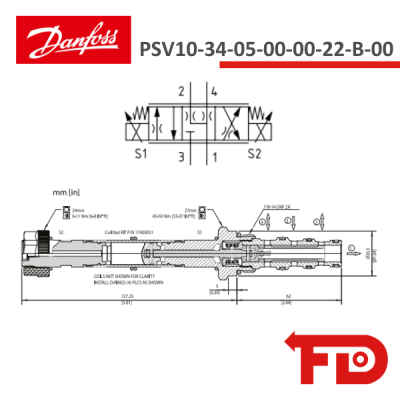

This is a 4-way, 3-position, spool type, non-compensated proportional directional valve. In its de-energized condition, port 3 is blocked, while ports 2 and 4 are open to port 1. Increasing the current to the bottom coil will cause the spool to move, proportionally opening flow from port 3 to 2 with return flow passing from port 4 to 1. Increasing the current to the top coil will proportionally open flow from port 3 to 4 with return flow passing from port 2 to 1. Using this as a variable orifice in conjunction with a compensator, the valve will provide compensated flow to an actuator in both directions.

Price available only for registered users

If you need help Contact Us!

11226438
Danfoss
