71180819 - COIL R13-12D-16W-DE-D - DANFOSS

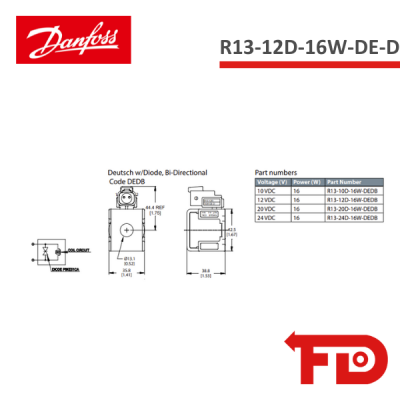

Description: R13-12D-16W-DE-D

Function: R13 Deutsch Diode

Specifications:

• Duty cycle: 100% at 133% of rated voltage and 70°C [158°F]

• Magnet wire insulation: (200°C)

• Ambient temperature range: -40 to +70 °C [-40 to 158 °F]

• Environmental rating: IP69K: AS, DE, FL and M3

• Input voltage range: 75% to 133% of rated voltage

• Optional bi-directional, transient voltage suppression diodes: Non polarity dependent, 51 volt nominal breakdown voltage.

• Weight: 0.22 kg [0.49 lb]
