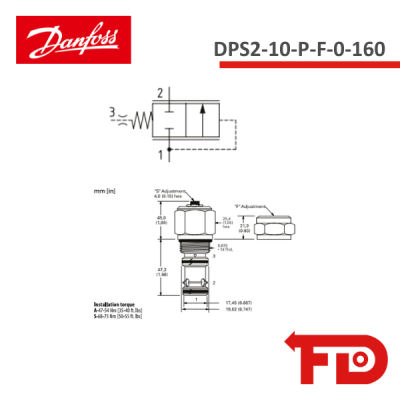

566089 - LOGIC ELEMENT DPS2-10-P-F-0-160 - DANFOSS

Description: DPS2-10-P-F-0-160

Logic Element, Normally Closed, Spool Type, Pilot to Close 290 bar [4200 psi]• 60 I/min [16 US gpm]

This is a 3-ported, normally closed, pilot to close spool type logic element. By opening port 3 to tank, flow can pass from port 1 to port 2. Flow is blocked from port 1 to port 2 unless the pressure is high enough in port 1 to overcome the spring set pressure. Applying pressure to port 3 will increase the pressure required in port 1 to open the valve by a factor of 1 to 1. This valve is ideal for use as a pressure compensator, bypass valve, or a pilot to close valve in regenerative circuits.
