83020700 - REDUCING PPR09-POD-20-00-00-B-00 - DANFOSS

Description:PPR09-POD-20-00-00-B-00

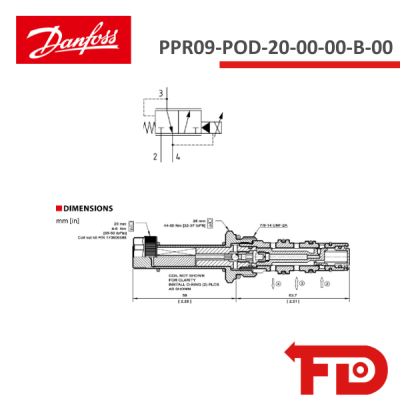

Proportional Pressure Reducing, Relieving, Pilot Operated, Normally Open to Drain 50 bar [725 psi] • 25I/min [6.6 US gpm]

This is a pilot operated, proportional pressure reducing/ relieving valve.In the de-energized condition, the inlet port 2 is blocked, while the reduced pressure in port 3 will be at the minimum setting and open to the tank port 4.By energizing the coil, the pressure in port 3 will increase proportionally to the current applied.Flow through port 2 to 3 is restricted to limit the pressure in port 3.In the case of over pressurization in port 3,the spool will open port 3 to port 4, which acts as a relief valve to limit the pressure in port 3.These valves are ideal for clutch control or as pilot valves for large directional control valves.
