810209419 - RELIEF - RV08-DR-3-E-XXX-B-00 - DANFOSS

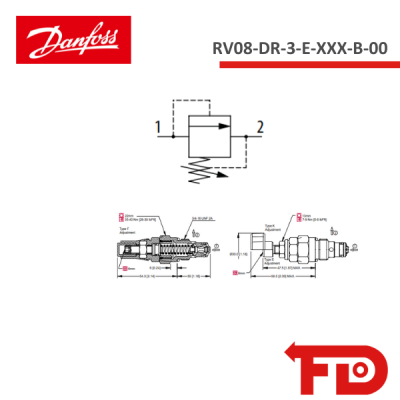

Relief Valve, Direct Acting, Poppet Type with Dampening

250 bar [3600 psi] • 30 l/min [8 US gpm]

DESCRIPTION AND OPERATION

This is a direct acting, poppet type relief valve that relieves from port 1 to 2. It features a highly damped poppet for smooth and stable response. It can be used as a cost-effective main relief or to protect an actuator from over-pressurization.
