810189519 - VALVE VEN 06-EN-3-00-XXX - DANFOSS

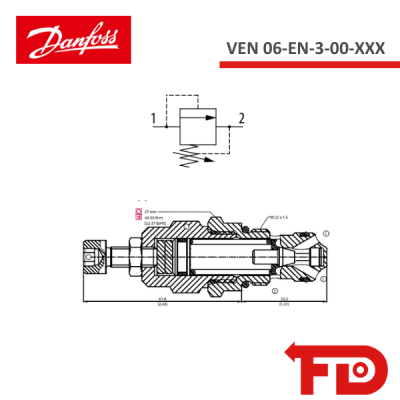

Relief Valve, Direct Acting, Poppet Type with Dampening

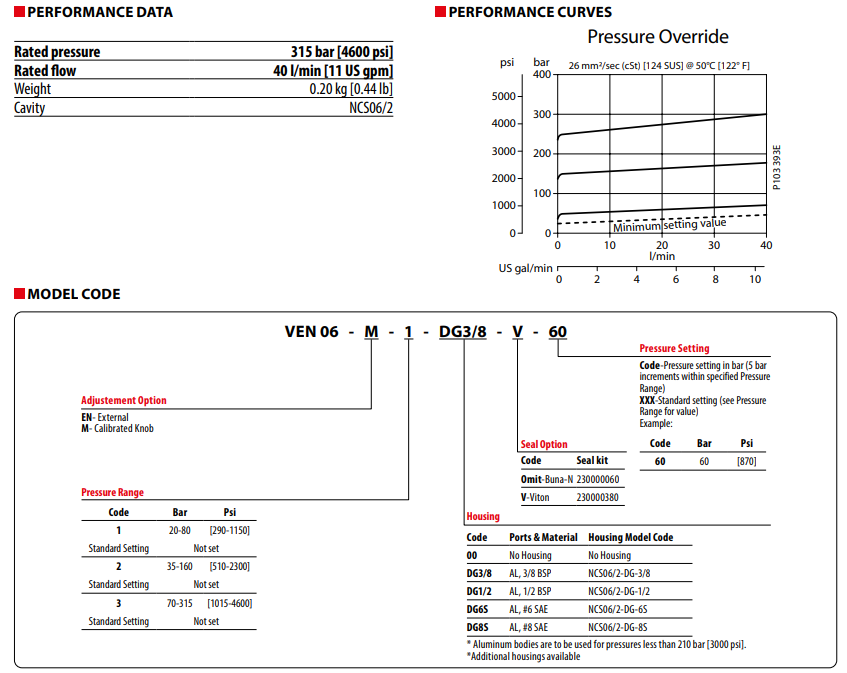

315 bar [4600 psi] • 40 l/min [11 US gpm]

DESCRIPTION AND OPERATION

This is a direct acting, poppet type relief valve that relieves from port 1 to 2. It features a highly damped poppet for smooth and stable response It can be used as a cost-effective main relief or to protect an actuator from over-pressurization.

Price available only for registered users

If you need help Contact Us!

One piece gear shaft construction

810189519
Danfoss
Size
06
Thread
M22x1,5
Cavity
NCS06/2
