CR000006 - REDUCING VALVE CPRL-060-PNNR-HN-S10-N300– ATLANTIC FLUID TECH
Description: CPRL-060-PNNR-HN-S10-N300

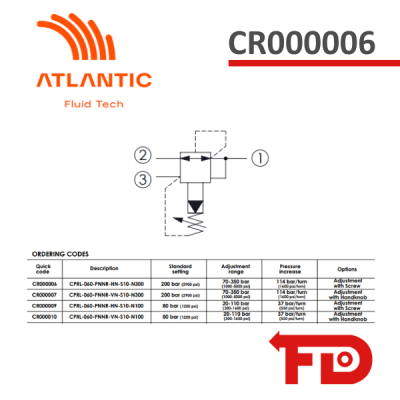

Function: Pilot operated pressure reducing/relieving valve
If you need help Contact Us!
| Max. operating pressure | 350 bar (5000 psi) |
| Rated flow | 60 l/min (16 gpm) |
| Standard Setting | 200 bar (2900 psi) |
| Adjustment Range | 70-350 bar (1000-5000 psi) |
| Pressure Increase | 114 bar/turn (1600 psi/turn) |
| Options | Adjustment with Screw |
| Cavity | SAE-10-3N |
| Weight | 0.26 kg |
| Seal Kit | RA700092 |
CR000006
