566310 - DIRECTIONAL CONTROL VALVE PTS3-10-0-80 - DANFOSS

Description: PTS3-10-0-80

Function: Directional Control Valve, 3-Way, Spool Type, Hydraulic Pilot, Internal Drain

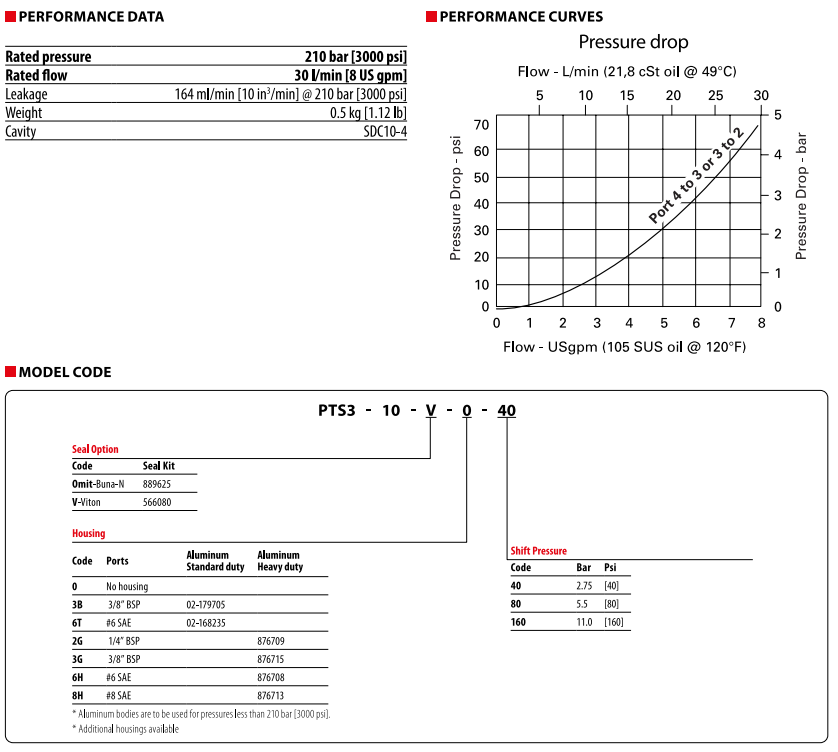

Directional Control Valve, 3-Way, Spool Type, Hydraulic Pilot, Internal Drain 210 bar [3000 psi]• 30 I/min [8 US gpm]

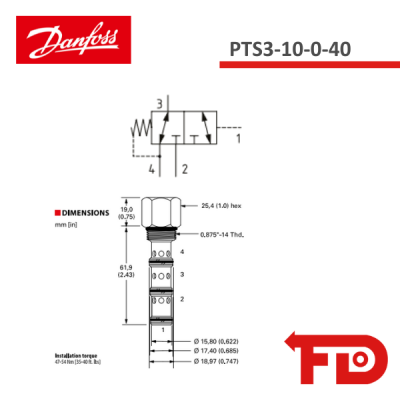

This is a 3-way, spool type, hydraulically piloted directional control valve with an internal drain. In the normal condition, port 3 is connected to port 4 with port 2 blocked. Pilot pressure at port 1 will cause the valve to shift, connecting port 3 to port 2 with port 4 blocked. During the cross-over transition all ports are blocked. Due to the internal hydraulic vent, the pilot pressure required shift the valve is dependent on the pressure in port 4, which would normally be connected to tank.
