565988 - DIRECTIONAL CONTROL VALVE PSV10-10-S-0-24 - DANFOSS

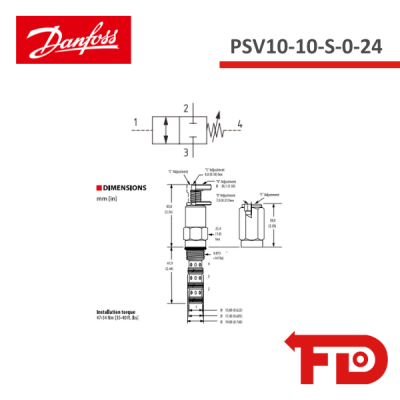

Description: PSV10-10-S-0-24

Function: Sequence Valve, Normally Closed, Spool Type, Hydraulic Pilot, External Drain

Sequence Valve, Normally Closed, Spool Type, Hydraulic Pilot, External Drain 210 bar [3000 psi]• 23I/min [6 US gpm]

This is a hydraulically pilot operated spool valve, normally closed from port 2 to 3 with port 4 as a drain port connected to tank. When the pilot pressure on port 1 reaches the setting, the valve will begin to open port 2 to 3. This is ideal for sensing pressure in a remote area of a circuit to sequence another operation
