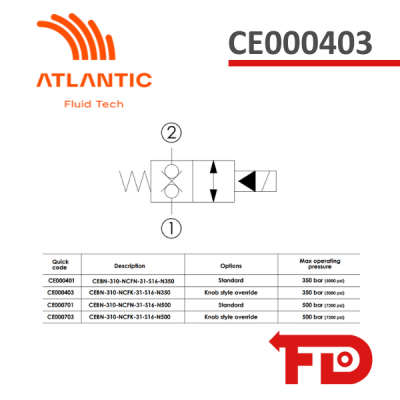

CE000403 - SOLENOID OPERATED CARTRIDGE 2-WAY - CEBN-310-NCFK-31-S16-N350 - ATLANTIC FLUID TECH

Specifications:

  • Max. operating pressure: 350 bar (5000 psi)
  • Rated flow: 310 l/min (82 gpm)
  • Cavity: SAE-16-2N
  • Options: Knob style override

Price available only for registered users

If you need help Contact Us!

Max. operating pressure 350 bar (5000 psi)
Rated flow 310 l/min (82 gpm)
Cavity SAE-16-2N
Weight  0.36 kg
Min. Voltage Required 90% of nominal
Coil Type

M7 or M3 type
Seal Kit RB900084
Installation Torque 200 - 210 Nm (148 - 155 ft-lb)
CE000403
Atlantic Fluid Tech
