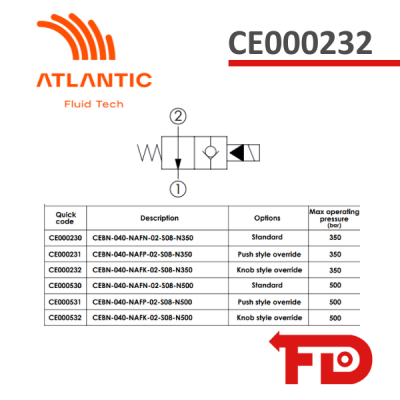

CE000232 - SOLENOID OPERATED CARTRIDGE 2-WAY - CEBN-060-NAFK-02-S08-N350 - ATLANTIC FLUID TECH
zoom_out_map
chevron_left chevron_right
Contact us about this product Did not find what you were looking for?

CE000232 - SOLENOID OPERATED CARTRIDGE 2-WAY - CEBN-060-NAFK-02-S08-N350 - ATLANTIC FLUID TECH

Description: CEBN-040-NAFN

Specifications:

  • Max. operating pressure: 350 bar (5000 psi)
  • Rated flow: 60 l/min (16 gpm)
  • Cavity: SAE-08-2N
  • Options: Knob style override

Price available only for registered users

If you need help Contact Us!

Max. operating pressure 350 bar (5000 psi)
Rated flow 60 l/min (16 gpm)
Cavity SAE-08-2N
Weight  0.15 kg
Min. Voltage Required 90% of nominal
Coil Type

M7 or M3 type
Seal Kit RA900081
Installation Torque 45 - 50 Nm (33 - 37 ft-lb)
CE000232
Atlantic Fluid Tech
