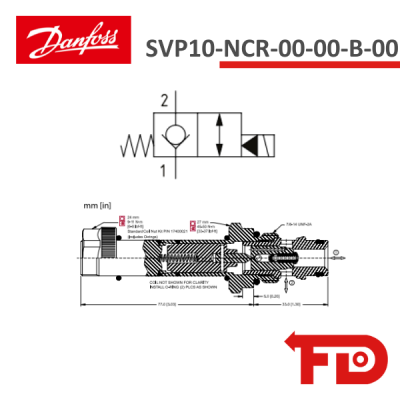

805315519 - SOLENOID OPERATED CARTRIDGE SVP10-NCR-00-00-B-00 - DANFOSS

Description: SVP10-NCR-00-00-B-00

Function: 2 WAY-2 POS ON-OFF POPPET VALVE NORMALLY CLOSED

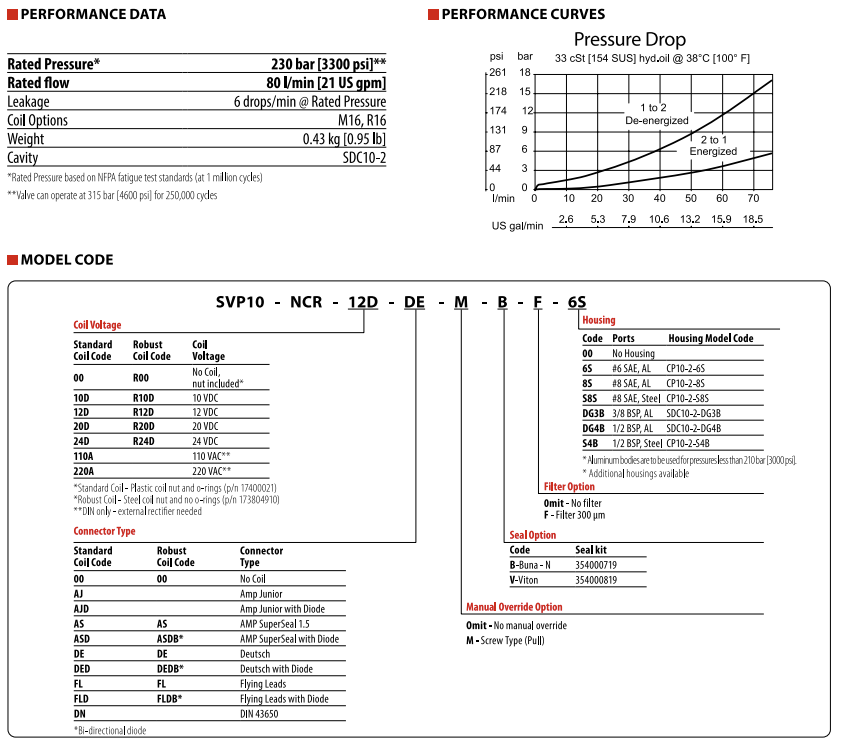

Solenoid Valve, 2-way, Poppet Type, Normally Closed, Pilot Operated with Reverse Free Flow 230 bar [3300 psi] • 80 I/min [21 US gpm]

This is a 2-way, 2-position, poppet type, pilot operated, normally closed solenoid valve. In its de-energized condition, flow passes from port 1 to 2 but is blocked in the opposite direction. When energized, flow passes from port 2 to 1 and from 1 to 2. Some models have the option of a filter at port 2. Due to the low leakage provided by the poppet design, these valves can be used to hold loads in position or to interrupt a pressure line where flow normally passes in both directions.
