805313019 - SOLENOID OPERATED CARTRIDGE SV08-23-01-00-00-B-00 - DANFOSS

Description: SV08-23-01-00-00-B-00

Function: 3 WAY-2 POS ON-OFF SPOOL VALVE

Solenoid Valve, 3-way, 2 position, spool type 230 bar 3300 psi] • 18 l/min [4.8 US gpm]

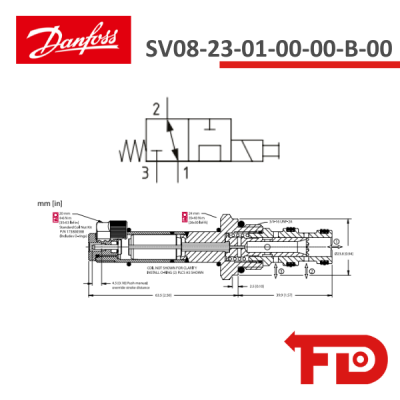

This is a 3-way  2 position, spool type, direct acting solenoid valve. In the de-energized condition, port 1 is open and port 2 and port 3 is blocked. When energized, port 3 is open to port 1 and port 2 is blocked. These valvea can be used in normally open, normally closed or sector modes. THer come standard with a push pin manual overide. Always check the operating enevelope to make sure the valve will work under the required application conditions.

Price available only for registered users

If you need help Contact Us!

805313019
Danfoss
