805339919 - SOLENOID OPERATED CARTRIDGE SV08-23-04-00-00-B-00 - DANFOSS
Description: SV08-23-04-00-00-B-00
Function: 3 WAY-2 POS ON-OFF SPOOL VALVE
Solenoid Valve, 3-way, 2-position, Spool Type 230 bar [3300 psi]• 12I/min [3.2 US gpm]

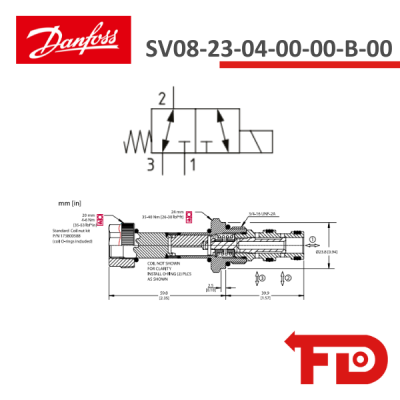

his is a 3-way, 2-position, spool type, direct acting solenoid valve. In the de-energized condition, port 3 is open to port 2 and port 1 is blocked. When energized, port 2 is open to port 1 and port 3 is blocked. These valves can be used in normally open, normally closed or selector modes. Always check the operating envelope to make sure the valve will work under the required application conditions.
805339919
