805313619 - SOLENOID OPERATED CARTRIDGE SV08-34-04-00-00-B-00 - DANFOSS

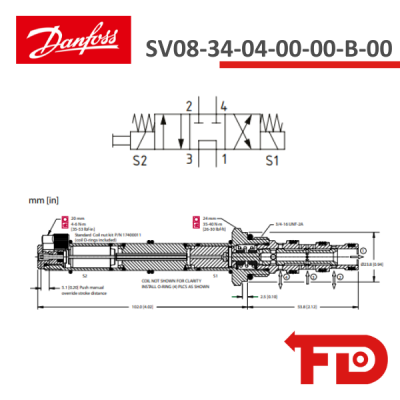

Description: SV08-34-04-00-00-B-00

Function: 4 WAY-3 POS ON-OFF SPOOL VALVE

Solenoid Valve, 4-way, 3-position, Spool Type 230 bar [3300 psi] • 8 l/min [2 US gpm]

This is a 4-way, 3-position, spool type, direct acting solenoid valve. In the center condition, ports 2 and 4 are closed while port 3 is connected to port 1. By energizing one coil, port 3 opens to 2 and port 4 to 1. When energizing the other coil, port 3 opens to 4 and port 2 to 1. This valve provides a directional control function with a neutral de energized state allowing the inlet flow to pass to tank or to another function while the work ports are blocked. It can be used in any hydraulic application where an actuator needs to be controlled in both directions.
