800397929 - SOLENOID OPERATED CARTRIDGE EVH 06/D5-00-00-00 - DANFOSS

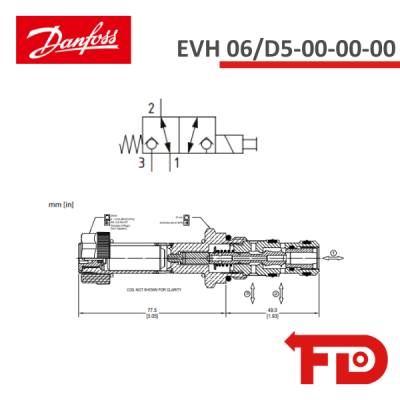

Description: EVH 06/D5-00-00-00

Function: 3 WAY-2 POS ON-OFF POPPET VALVE

Solenoid Valve, 3-way, 2-position, Poppet Type 230 bar [3300 psi] • 25 l/min [6.6 US gpm]

This is a 3-way, 2-position, poppet type, direct acting solenoid valve. When de-energized, the valve blocks flow from port 3 while allowing flow between port 1 and 2. When energized, the valve poppet blocks flow from port 1 while allowing flow between port 2 and 3. These valves come standard with a push pin manual override. This valve is ideal for low leakage requirements to hold a load in position.

Price available only for registered users

If you need help Contact Us!

800397929
Danfoss
